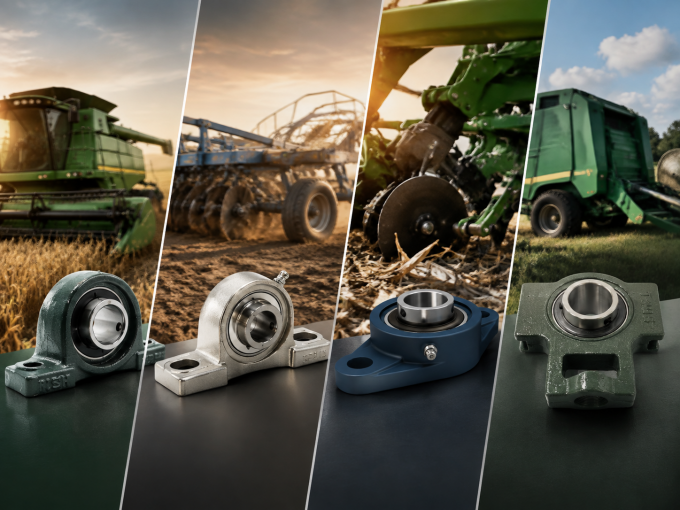

How pillow block bearings for farm equipment perform across every stage — from soil preparation to grain storage. A practical OEM selection guide for replacement agricultural bearings and farm machinery bearing housing.

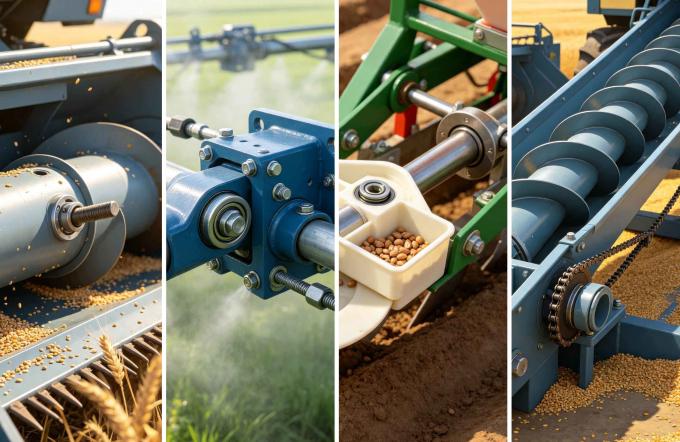

Agricultural machinery works in brutal conditions — mud, dust, shock loads, and temperature extremes. Yet every rotating shaft on a tractor, combine, or planter relies on one component: the mounted bearing. Whether you are an OEM engineer specifying pillow block bearings for farm equipment or a distributor sourcing replacement agricultural bearings, understanding where each bearing type fits in the farming lifecycle is essential. This guide maps the full chain — from tillage to harvest — and helps you select the right farm machinery bearing housing for every appliion.

1. Tillage: Bearings That Take the Hardest Hits

   Tillage equipment — disc harrows, rotary tillers, subsoilers — delivers the most punishing loads in agriculture: heavy shock, abrasive soil, and non-stop vibration. Choosing the correct farm machinery bearing housing here prevents in-field breakdowns that cost hours of prime working time.

   Bearing Types by Tillage Equipment

   Equipment	Bearing Type	Why
   Disc harrow gang shaft	UCP cast-iron pillow block	High radial load + impact
   Rotary tiller blade rotor	UCP with triple-lip seal	Soil/dust exclusion priority
   Power harrow tine shaft	UCFL oval flanged	Tight mounting clearance
   Subsoiler depth wheel	UC insert + ductile iron housing	Extreme shock resistance

   Selection Checklist for Tillage Bearings

   Factor	Specifiion
   Seal	Triple-lip minimum; labyrinth preferred
   Housing	Cast iron FC200; ductile iron for heavy-impact
   Internal clearance	C3 (thermal expansion margin)
   Grease	EP lithium-complex, NLGI #2, high drop point

2. Planting & Seeding: Dust Is the #1 Enemy

   Seeders and planters run in clouds of fine dust. Bearing failure here means uneven seed depth and lost yield — a hidden cost many operators underestimate until harvest data reveals it. Many replacement agricultural bearings are ordered for planter maintenance in late winter, right before spring planting.

   Appliion Table

   Component	Bearing	Key Feature
   Seed meter drive shaft	UCP graphite-sealed	Dry-running tolerance
   Fertilizer auger	Stainless steel UCF	Corrosion resistance
   Press wheel hub	UC + thermoplastic housing	Lightweight, rust-proof



3. Crop Protection & Spraying: Corrosion vs. Bearings

   Sprayers and spreaders face aggressive chemicals, high moisture, and frequent washdowns. Standard carbon steel farm machinery bearing housing degrades fast here — stainless or composite options pay back quickly.

   Pro Tip: Standard rubber seals use carbon-steel garter springs that rust through in one season of chemical exposure. Always spec stainless steel garter springs on replacement agricultural bearings ordered for sprayer duty.

• Sprayer Boom Hinge
  UC insert bearing, chromed inner ring, stainless garter spring. Avoids rust seizure between seasons.

• Fertilizer Spreader Disc
  Nickel-plated or zinc-coated UCP. Standard cast iron pits within one season under ammonium exposure.

• Pump Drive Assembly
  Thermoplastic-housed UC bearing. Full chemical immunity at half the weight of stainless.

• Washdown Zones
  316 stainless UCF with food-grade grease. Required where hygiene regulations apply.

4. Harvesting: 18 Hours a Day, No Room for Failure

   A combine harvester contains 30–50+ mounted bearing units. During the compressed 2–3 week harvest window, these machines run dawn to dusk. A single failed pillow block bearing for farm equipment can stop an entire combine during the narrow harvest window — costing thousands in lost productivity per day.

   Combine Harvester Bearing Map

   Loion	Bearing	Primary Demand
   Header auger	UCP / UCF	High-speed stability
   Feeder house conveyor	UCT take-up	Belt tension + shock
   Threshing cylinder	UCP heavy-duty	Extreme vibration
   Straw walker crank	UCP eccentric-fit	Dynamic load cycles
   Cleaning fan	UCP / UCF	High RPM balance
   Grain elevator	UCT take-up	Corrosion + adjustability
   Unloading auger	UCP / UCF	Overhung load capacity



5. Post-Harvest Handling: Grain Movement & Storage

   After harvest, grain passes through augers, bucket elevators, conveyors, and dryers — all shaft-driven and all relying on mounted bearings. Dust-explosion compliance (ATEX) and food-grade lubricants become critical here, especially for bearings in enclosed grain handling facilities.

   Equipment Bearing Special Requirement

   Equipment	Bearing	Special Requirement
   Grain auger hanger	UC insert + HT grease	High-temperature stable for dryers
   Bucket elevator pulley	UCT take-up	Spherical seat for misalignment
   Belt conveyor idler	Sealed UC ball bearing	Anti-static / ATEX compliance

6. Hay & Forage: Speed and Impact Combined

   Balers and mower-conditioners are unique: high rotational speeds (3,000+ RPM on cutter bars) plus brutal reciproing impact (baler plungers). Bearings here must handle both ends of the spectrum simultaneously.

   Appliion Bearing Key Feature

   Appliion	Bearing	Key Feature
   Baler plunger	UCP eccentric-lock	Reversing shock resistance
   Mower disc cutter	UC insert, C4 clearance	3,000+ RPM thermal tolerance
   Round baler roller	UCF set-screw	Moderate load, easy servicing

OEM Bearing Selection Framework: 4 Decisions That Matter

A. Sealing Level

B. Locking Mechanism

C. Lubriion Strategy

• Grease type: EP lithium-complex (Polyrex EM or equivalent), NLGI #2

• Regreasing cycle: Every 50–100 hours under heavy dust; every 200 hours in clean conditions

• Sealed-for-life: Use in hard-to-access positions where servicing is impractical

Quick Guide: Specifying Replacement Agricultural Bearings

When ordering replacement agricultural bearings for existing equipment, provide these three data points to ensure a correct match:

Mounted Bearing Types at a Glance

One Bearing, One Season — That's All It Takes

Mounted bearings are a fraction of a machine's bill of materials, but a single failure during harvest can cost more than the bearing itself a hundred times over. Whether you are speccing pillow block bearings for farm equipment at the design stage or sourcing replacement agricultural bearings for the service aftermarket, the right seal, housing, and lock combination makes the difference between a machine that runs the full season and one that sits idle when it matters most.
